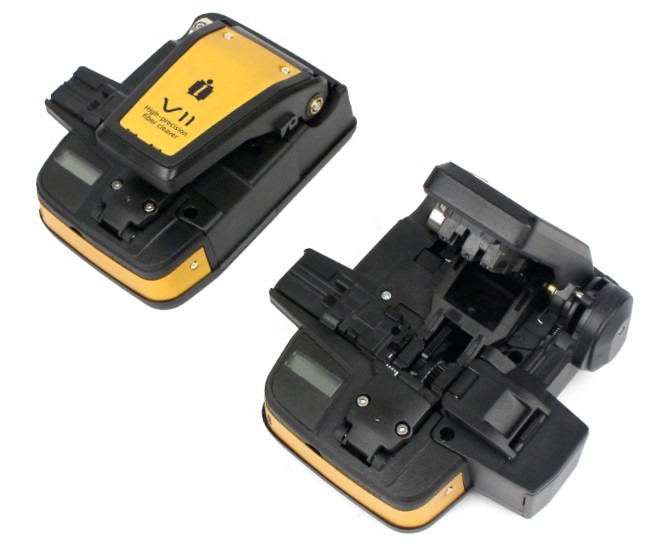

Fibre Cleaver V11

 In stock
V11 aims to be the most accurate and advanced cleaver produced in the market. The cleaves are made in a single, swift action (One-step) with fully automatic blade rotation and height adjustment after each cleave to ensure the best cleave results are produ
  • Product Code
  • CLEAVER/V11
Request for quote
Product Description
Reviews

Description:

Fully automatic, precision optic fibre cleaver - one-step, intelligent cleaver with auto blade rotation & height adjustment.

Model              V11
Type Single fibre and Ribbon fibre
Cladding Diameter 125μm
Cleaved Length Single Fiber : 5mm ~ 24mm (Coating diameter ≤ 250μm) , 10mm ~ 20mm (Coating diameter >250μm)
Ribbon (Multi) Fibre: 10mm
Applicable Fibre Cable Single Fibre: 160μm to 900μm, 2mm ~ 3mm and drop cable
Ribbon (Multi) Fibre : 2 ~ 16 ribbon fibres
Typical Cleaved Angle Single Fibre : 0.3 ° ~ 0.8 °
Ribbon (Multi) Fibre : 0.3 ° ~ 1.0 °
Typical Blade Life  Total 60,000 fibre cleaves (2,000 cleaving per each point, total 30 points)
Holder Universal holder, Replaceable holder

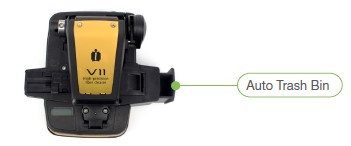

Weight 245g (with Auto Trashbin) / 220g (with Side Cover)
Dimensions 105L x 109W x 52H mm (with Auto Trash Bin) / 87L x 105W x 52H mm (with Side Cover)
Operation Condition Temperature: -10 ~ 50 ºC / Humidity: 0 ~ 95%RH (non-dew)
Storage Condition Temperature: -40 ~ 80 ºC / Humidity: 0 ~ 95%RH (non-dew)
Battery Coin type Lithium battery CR1220
