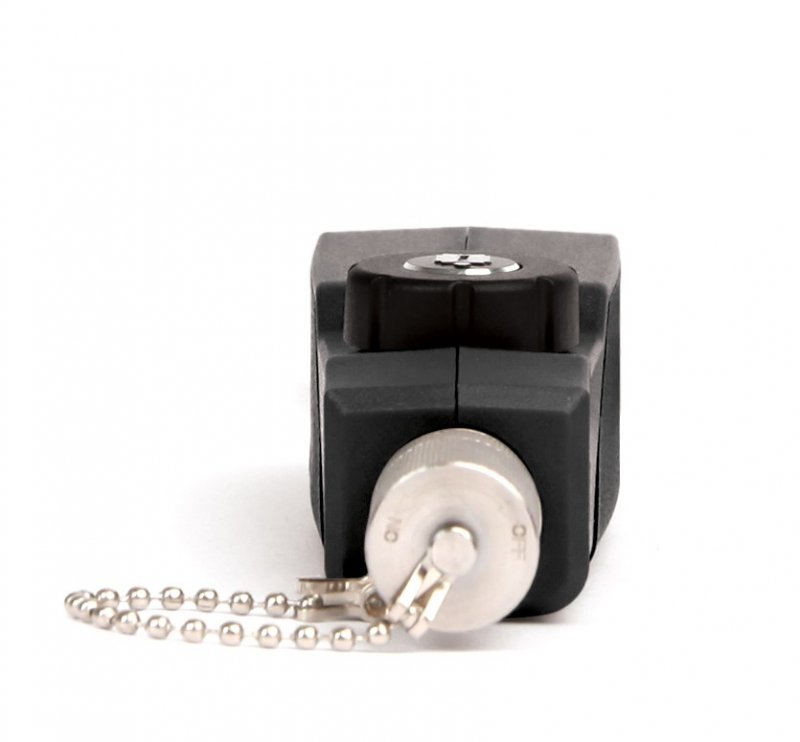

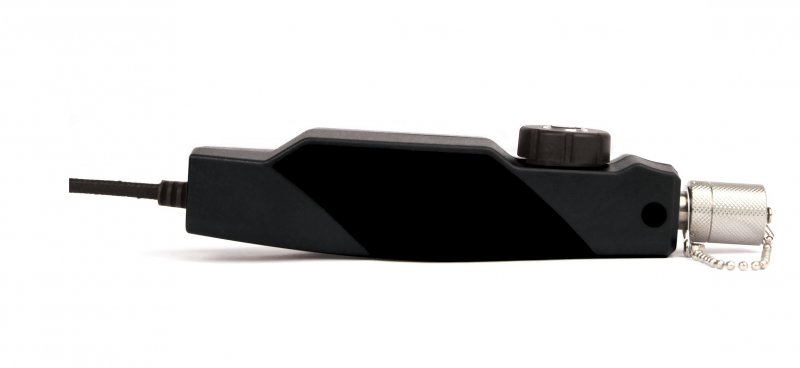

The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.
Importance of a clean connector end interface
It is an essential to utilize auto-analysis software to test the connector and assess its quality during the commissioning and installation of the fiber. It is very important to save the verification records of the connector for future reference. End-to-end verification can be achieved by combining the connector test with the fiber verification. The following are displayed test images.
Convenient test capability with PC software

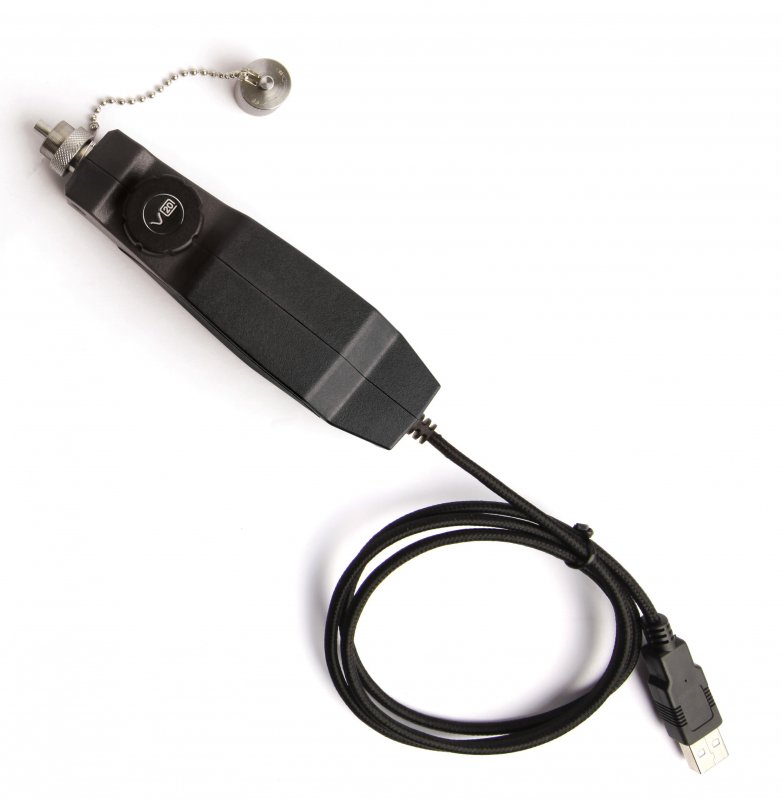

Such software is installed on a PC, connected easily by a USB 2.0 interface. This makes the operation convenient. The results can be analyzed through the following procedure: connecting the optical fiber to the device, adjusting the sharpness and then tapping “screenshot”
| Part Number |
F4540 |
Resolution |
3.2 μm |
| Image Sensor |
640 x 480 (VGA) |
Visual Test |
< 5 μm |
| View Angle |
200μm*200μm of high magnification
/ 360μm*360μm of low magnification
|
Light Source |
Blue LED |
| luminance technique |
Coaxial light source |
Digital Zoom |
3 grades |
| Connector |
USB 2.0 |

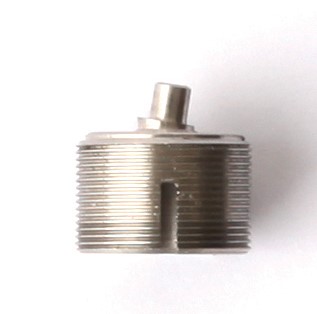

Patchcord Tip Adapters |
2.5mm (UPC, APC), 1.25mm (UPC, APC) |
| Operating Temperature |
-10 ~ +60 °C |
Storage Temperature |
-25 ~ +70 °C |
| Dimensions |
150x35x34mm |
Weight |
168 g |
.
