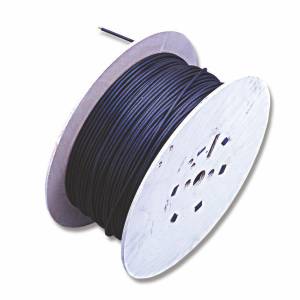

External 2 Pair Dropwire Telephone Cable Dropwire 10B
Application
This cable is designed for overhead distribution lines, typically from a telegraph pole to the customer's premises.
Product Description
The cable contains two 0.5mm plain solid copper pairs insulated with solid polyethylene and wrapped with a polyester tape, three elements of 3 x 0.25mm brass coated steel support strands insulated with PVC, and is sheathed overall with a medium density black polyethylene sheath.
Product Construction
Conductor: 0.5mm Plain Annealed Copper Wire (PACW)
Insulation:
Solid High Density Polyethylene
Diameter over Insulation: 1.02mm
Colour Code:
Pair 1: Orange/White Lay 89mm
Pair 2: Green/Black Lay 95mm
Core Wrap: 23 micron Polyester Tape
Support Strand: Brass Plated Steel, 3 elements of 3 x 0.25mm strands, each element PVC Insulated to 1.0mm.
Ripcord: Nylon
Identification: Manufacturer's Thread to PD 2379
Jacket:
Black Medium Density Polyethylene
Minimum Thickness: 0.4mm
Minimum Diameter: 5.1mm
Target Diameter: 5.3mm
Maximum Diameter: 5.6mm
Electrical Properties (20°C):
Conductor Resistance: 95 Ω/km Maximum
Mutual Capacitance: 56 nF/km Maximum
Capacitance Unbalance: 275 pF/500m Maximum
Insulation Resistance: 10,000 MΩ/km Minimum
Breaking Load:
Minimum: 1350 Newtons; Maximum: 1550 Newtons
